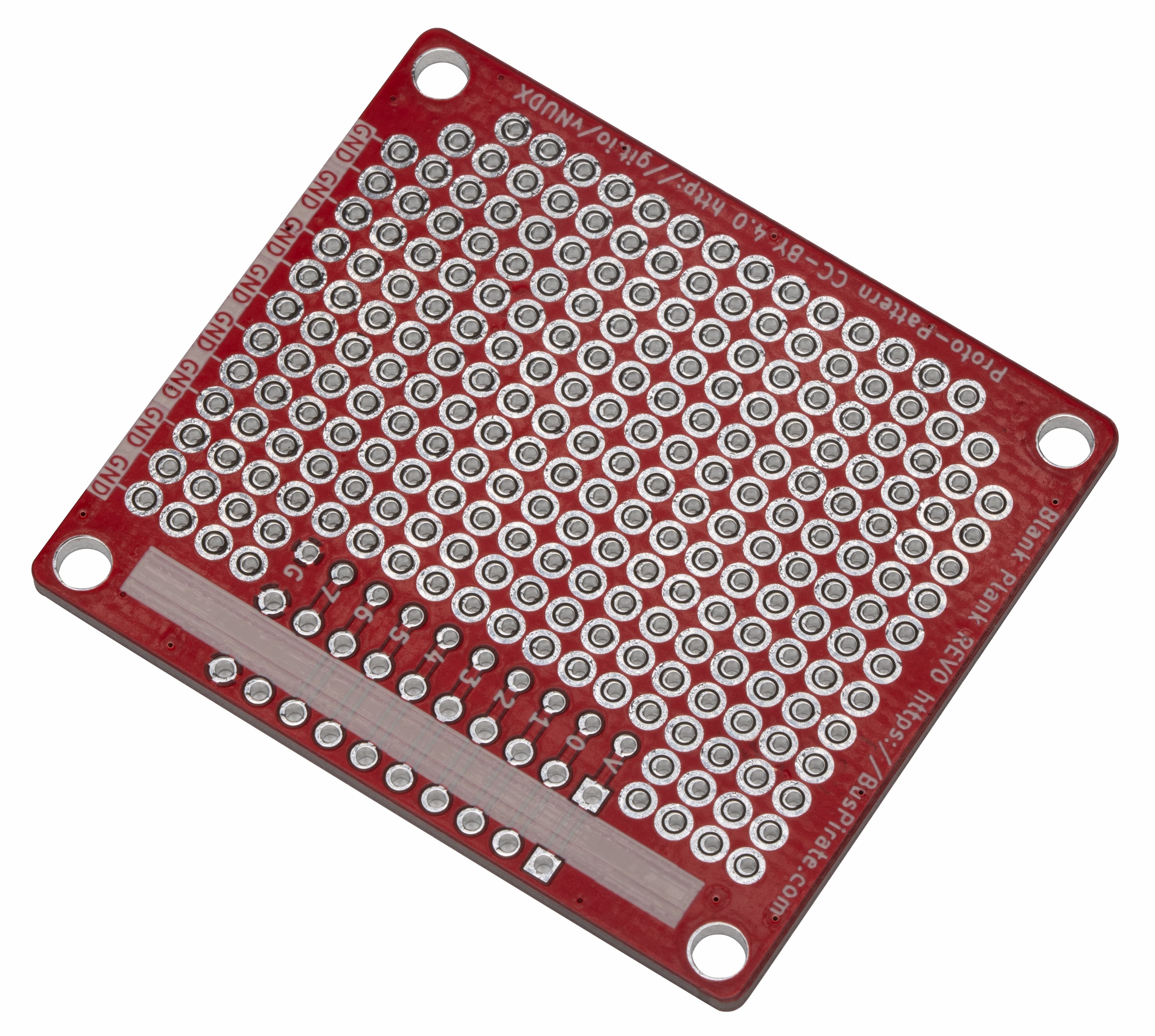

Blank Plank proto board

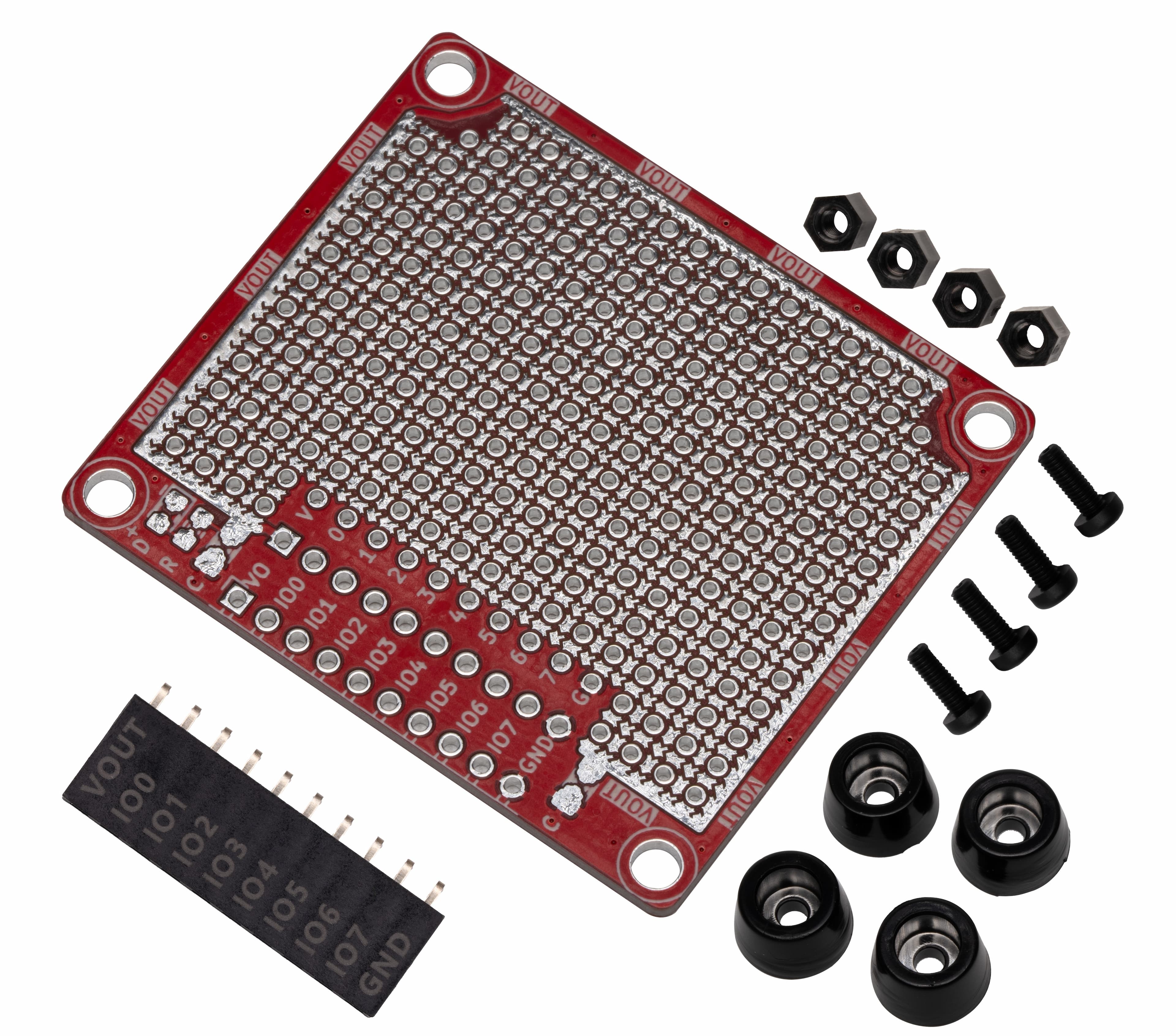

A "blank plank" for prototyping and debugging your own hardware with Bus Pirate 5+. A community driven design from the forum. SMD and through hole prototyping area The bottom layer of through hole vias a small isolated ring, and a larger surrounding ring that connects to ground Footprint for 0805/0603/0402 power LED and resistor Footprint for two CASE-A/1206/0805/0603/0402 power supply capacitors Contains: 1 blank plank, 1 laser etched 10P connector, 4 sets of feet.
